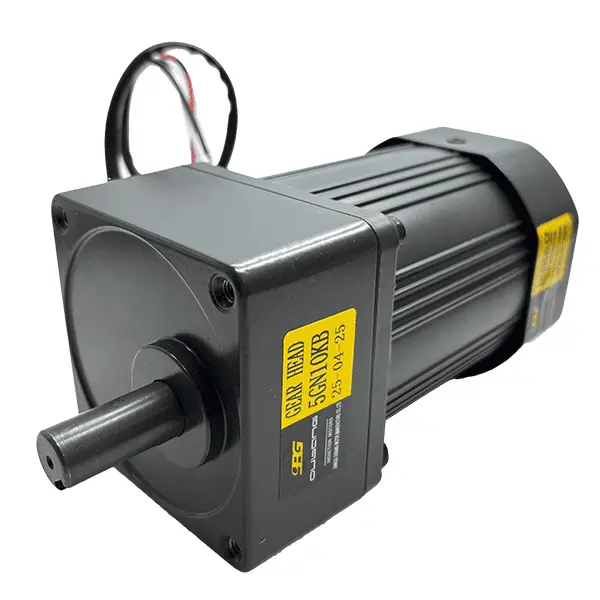

90W AC Induction Gear Motor with Gearbox |5IK90GN-CF 5IK90GN-YF
The 90W AC Induction Gear Motor with Gearbox is available in two models: 5IK90GN(GU)-CF (fixed-speed) and 5IK90GN(GU)-YF (variable-speed with inverter). It provides reliable performance for conveyors, automation systems, and machinery control, ensuring durability and stability.
Product Highlights
90W Output Power
Provides high torque and smooth adjustable speed for conveyors, packaging, and automation lines.
Compact Frame Size
90×90mm aluminum housing offers excellent heat dissipation and long service life.
Dual Voltage Options
Available in single-phase 220V and three-phase 220V/380V versions to meet different equipment requirements.
Variable Speed with Inverter
Three-phase version offers adjustable speed when combined with a frequency inverter.
-
Description
-
Specifications
Overview
The 90W AC Induction Gear Motor with Gearbox is available in two models: 5IK90GN(GU)-CF (fixed-speed) and 5IK90GN(GU)-YF (variable-speed with inverter). Designed as a compact AC gear motor for industrial automation, it delivers stable performance and flexible speed control. Compatible with 5GN standard gearheads and 5GU heavy-duty gearheads, this motor provides high torque, durability, and versatile installation options for various equipment applications.
Key Features
- Power Output: 90W rated power ensures efficient torque transmission for automation machinery.
- Gearhead Compatibility: Works with 5GN (standard) and 5GU (heavy-duty) gearboxes to meet different torque requirements.
- Model Options: 5IK90GN(GU)-CF for fixed speed, and 5IK90GN(GU)-YF for adjustable speed when used with a frequency inverter.
- Shaft Sizes: Available with 12mm or 15mm shaft diameters for flexible assembly and configuration.
- Reliable Construction: Aluminum housing ensures excellent heat dissipation and long service life.
- Voltage Choices: Single-phase 220V and three-phase 220V/380V versions available for different system setups.
Applications
The 90W AC Induction Gear Motor with Gearbox is suitable for a wide range of light and medium-duty equipment:
- 🚚 Conveyors: Provides smooth motion and stable torque for conveyor systems in automation lines.
- 🦾 Automation Systems: Ideal for precision control using the variable-speed inverter version.
- 🏭 Industrial Machinery: Designed for compact machinery requiring durable torque performance.
- 📦 Packaging Equipment: Offers reliable operation and precise speed regulation.
- ⚙️ Material Handling Equipment: Perfect for stable transmission and continuous operation.
All OUBANG 90W AC geared motors are customizable to meet different industrial and OEM application requirements.
Specifications
| Parameter | 5IK90GN(GU)-CF (Fixed-speed) | 5IK90GN(GU)-YF (Variable-speed with inverter) |
|---|---|---|
| Output Power | 90W | 90W |
| Voltage | Single-phase 220V | Three-phase 220V/380V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1300/1600 | 1300/1600 |
| Speed Control Range (r/min) | Fixed Speed | Variable Speed (adjustable with inverter) |
| Starting Torque (kg·cm) | 5.8 | 24 |
| Rated Torque (kg·cm) | 6.7 | 6.7 |
| Rated Current (A) | 0.64 | 0.5 / 0.29 |
| Capacitor (μF / V) | 5 / 450V | — |
Both 12mm and 15mm output shaft diameters are available. The standard motor is fanless, while optional fan-cooled versions can be provided upon request.
Gearbox and Performance (with 5GN / 5GU)
The 90W AC Induction Gear Motor is available with two types of gearheads:
- 5GN Gearhead (Standard): Suitable for general applications where adjustable speed is needed.
- 5GU Gearhead (Heavy-Duty): Designed for high-torque operations in heavy-duty industrial machinery.
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 250 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 416 | 250 | 120 | 83 | 50 | 30 | 15 | 8.3 | 6 | 3 |
| Output Speed (r/min, 60Hz) | 500 | 300 | 150 | 100 | 60 | 50 | 25 | 15 | 10 | 5 |
| Max Torque (kg·cm) | 16.4 | 27.3 | 55 | 110 | 148 | 200 | 200 | 200 | 200 | 200 |
All 90W AC induction gear motors from OUBANG Motor provide stable output, long service life, and excellent efficiency—ideal for conveyors, automation systems, and compact industrial machinery.
Selection & Service
We offer flexible options for voltage, power, torque ratio, flange size, and mounting orientation. Gearbox shaft diameters are available in 12mm or 15mm. The standard motor is fanless, while an optional fan-cooled version can be provided upon request. Custom shaft designs, controller matching, and OEM accessory kits are also available to meet your automation needs.
Explore more OUBANG AC Gear Motors such as
25W AC Speed Control Motor,
40W AC Induction Gear Motor,
60W Induction Gear Motor, and
250W AC Parallel Shaft Gearmotor.
