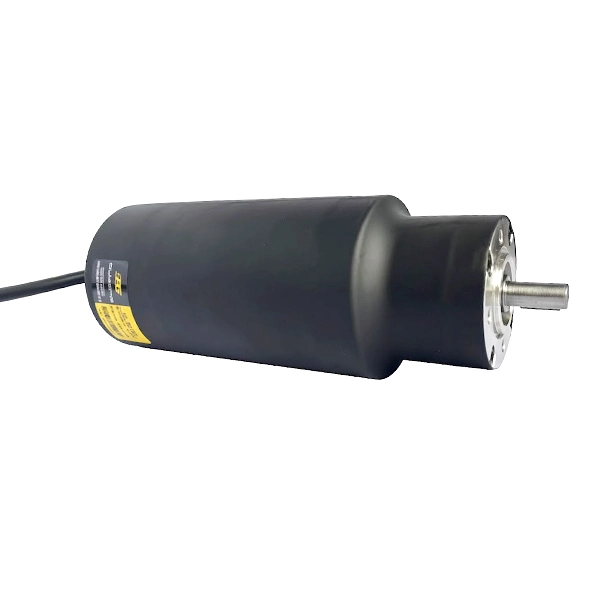

24V 150W DC Gear Motor for Solar Tracker (ZYT08RC-GB)
24V 150W DC gear motor ZYT08RC-GB with 20:1 gearbox and IP65 protection, ideal for solar tracker rotation, outdoor automation, and positioning systems.
Product Highlights
High Torque Output
Delivers strong torque for precise solar tracker rotation and stable directional control.
Outdoor-Rated Protection
IP65-rated housing ensures reliable waterproof and dustproof performance for outdoor environments.
Precision Gearbox
Integrated 20:1 gearbox provides smooth motion, accurate positioning, and high transmission efficiency.
Efficient & Durable
150W DC motor minimizes heat, reduces power loss, and offers long service life for solar tracking systems.
-
Description
-
Specifications
Overview
The 24V 150W DC Gear Motor (Model ZYT08RC-GB) is designed for solar photovoltaic tracking systems and other outdoor automation equipment.
It features a compact sealed housing, integrated gearbox, and high protection rating, ensuring reliable rotation and long-term outdoor use.
With its 24V DC power supply, 150W output, and 20:1 reduction ratio, this motor delivers smooth torque transmission and stable positioning performance, making it ideal for solar tracking actuators and directional control mechanisms.
Key Features
- Rated Power: 150 W with high efficiency and stable output
- Rated Voltage: 24 V DC
- Integrated Gearbox: Model ZJXJ6-20, gear ratio 20:1
- Rated Speed: 120 RPM ±8%
- Rated Torque: 0.955 N·m (output torque up to 15.47 N·m after gearbox)
- Protection Grade: IP65, suitable for outdoor environments
- Operating Temperature: −20 °C to +70 °C
- Low Noise: ≤65 dB at 1 m
- Durable Design: Aluminum housing with heat-shrink protection sleeve
- Electrical Life: >2000 hours (S2 duty)
Applications
- Solar photovoltaic tracking systems (single or dual-axis trackers)
- Solar concentrator positioning mechanisms
- Outdoor automation and directional actuators
- Satellite tracking, antenna adjustment, and environmental monitoring systems
- Smart agriculture and IoT positioning equipment
Specifications
| Item | Description |
|---|---|
| Motor Type | ZYT08RC-GB |
| Rated Voltage | 24 V DC |
| Rated Power | 150 W |
| No-Load Speed | 1500 rpm ±10% |
| Rated Speed | 120 rpm ±8% |
| Rated Torque | 0.955 N·m |
| Gearbox Model | ZJXJ6-20 (Integrated Type) |
| Gear Ratio | 20 : 1 |
| Output Torque | 15.47 N·m |
| Transmission Efficiency | ≈81% |
| Noise Level | ≤65 dB (L100 cm) |
| Protection Level | IP65 |
| Insulation Class | Class B |
| Insulation Resistance | ≥ 20 MΩ |
| Operating Temperature | −20 °C ~ +70 °C |
| Lead Wires | Hall A/B/C, motor ±, GND, +5 V encoder (16 pulses) |
