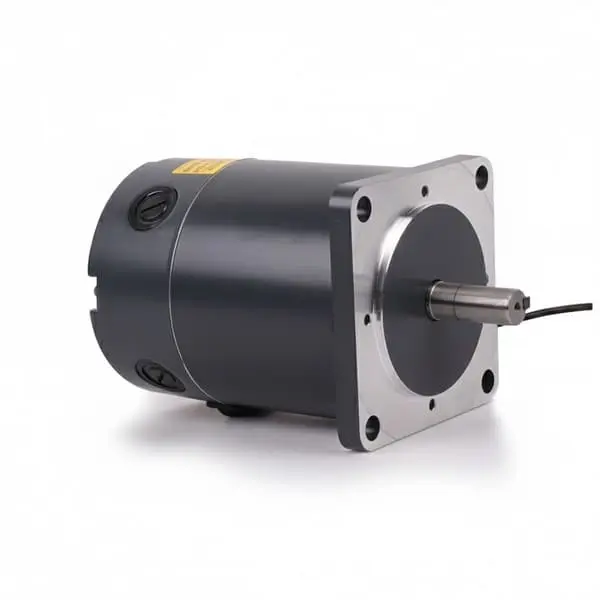

24V–72V 500W Sweeper Blower Motor for Floor Cleaning Machines
High-efficiency 500W sweeper blower motor for cleaning equipment. Delivers 3000RPM speed and 1.83N·m torque with quiet and reliable operation.
Product Highlights
High Torque Output
Delivers 1.83 N·m torque with smooth and efficient transmission
Wide Voltage Range
Supports 24V, 36V, 48V, and 72V DC power options for versatile use
Low Noise & Reliable
Operates below 50dB with stable suction and continuous-duty performance
Compact Design
Lightweight motor ideal for sweepers, scrubbers, and vacuum systems
-
Description
-
Specifications
Overview
oubang motorZYT114FA-7GA series sweeper blower motor is designed for industrial and commercial cleaning equipment such as floor sweepers, scrubbers, and vacuum systems. Featuring a compact body, strong suction power, and reliable performance, this motor ensures consistent airflow and efficient debris collection.
With voltage options from 24V to 72V and rated output power of 500 W, it delivers stable torque and smooth operation even in continuous-duty applications.
Key Features
- 💨 High-efficiency 500 W DC motor for blower and suction systems
- ⚙️ Rated speed 3000 RPM with torque up to 1.83 N·m
- 🔋 Wide voltage range: 24 V / 36 V / 48 V / 72 V options
- 🔇 Low vibration and noise (< 50 dB)
- 🧊 Operates in ambient temperatures −10 °C – +40 °C
- 🛡️ IP21 protection class with insulation grade E
- 🔌 Stable performance for continuous duty (S1)
Applications
- Floor sweepers and scrubbers
- Industrial vacuum systems
- Cleaning robots and dust extraction units
- Air blowers and suction modules
- Customized cleaning machines
Specifications
| Model | ZYT114FA-7GA |
| Rated Voltage | 24 V / 36 V / 48 V / 72 V DC |
| Output Power | 500 W |
| Rated Speed | 3000 RPM ± 10% |
| Rated Torque | 1.83 N·m |
| Insulation Resistance | ≥ 20 MΩ |
| Insulation Class | E |
| Ambient Temperature | −10 °C – +40 °C |
| Duty | S1 (Continuous) |
| Protection Grade | IP21 |
| Dielectric Strength | ≥ 2000 V/S |
| Noise Level | ≤ 50 dB |
| Cable Length | 40 cm |
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
