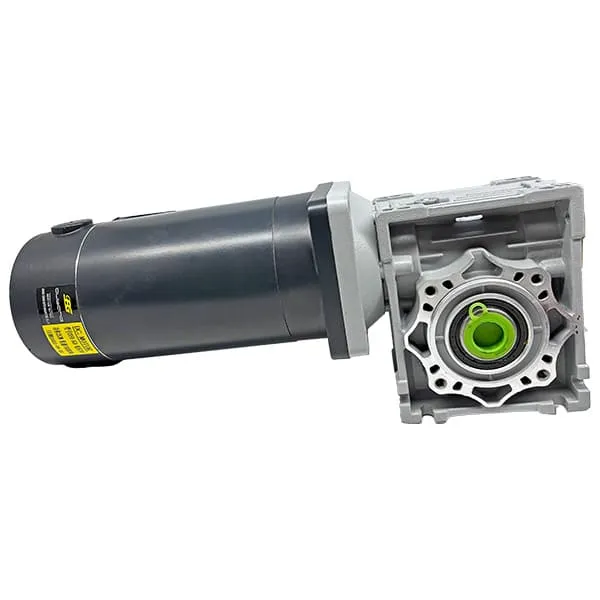

Self-Locking Worm Gear Motor | High Torque DC Brushed Motor
Compact self-locking worm gear motor with high torque and low noise. Voltage range 12V–220V, power 30W–1000W, available with gear ratios 5–100 for smooth and reliable motion control. Perfect for automation, conveyors, and lifting systems.
Product Highlights
Self-Locking Safety
Worm gear prevents reverse drive
Wide Voltage Range
12V–220V for flexible use
Reversible Rotation
Forward and reverse control
Low Noise Operation
Smooth, quiet performance
-
Description
-
Specifications
Overview
Our DC brushed worm gear motor combines a permanent magnet DC motor with a precision worm gearbox for compact, high-torque performance. With a wide voltage range (12V–220V) and power options from 30W to 1000W, this motor is engineered for demanding applications that require durability, low noise, and efficient self-locking capability.
The integrated worm gearbox offers gear ratios from 5:1 to 100:1, enabling flexible speed reduction from 1000 to 3000 RPM input speed. Thanks to its self-locking feature, the motor prevents back-driving, ensuring safe operation in vertical or load-holding applications.
Built for long service life, low temperature rise, and stable output torque, this worm gear motor is suitable for continuous duty in industrial automation, robotics, and conveyor systems.
Key Features
- Self-locking worm gear motor prevents reverse drive for enhanced safety
- Wide power range: 30W–1000W, adaptable to light and heavy-duty tasks
- Voltage options: 12V / 24V / 48V / 110V / 220V
- Gear ratios: 5:1 to 100:1 for versatile speed control
- Motor speed: 1000–3000 RPM (before reduction)
- Reversible rotation for forward and reverse control
- Low noise & low temperature rise, ideal for quiet working environments
- Compact design with high torque output
Applications
- Conveyors & material handling
- Packaging machinery
- Automatic gates and barriers
- Lifting and hoisting equipment
- Robotics and automation systems
- DIY and custom engineering projects
Specifications
| Motor Type | DC Brushed Permanent Magnet |
| Voltage Range | 12V, 24V, 48V, 110V, 220V |
| Power Output | 30W – 1000W |
| Motor Speed | 1000 – 3000 RPM |
| Gearbox Type | Worm Gear Reducer |
| Reduction Ratios | 5:1 – 100:1 |
| Rotation | Forward & Reverse |
| Special Feature | Self-locking, High Torque |
| Noise Level | Low |
| Cooling | Natural Air Cooling |
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
