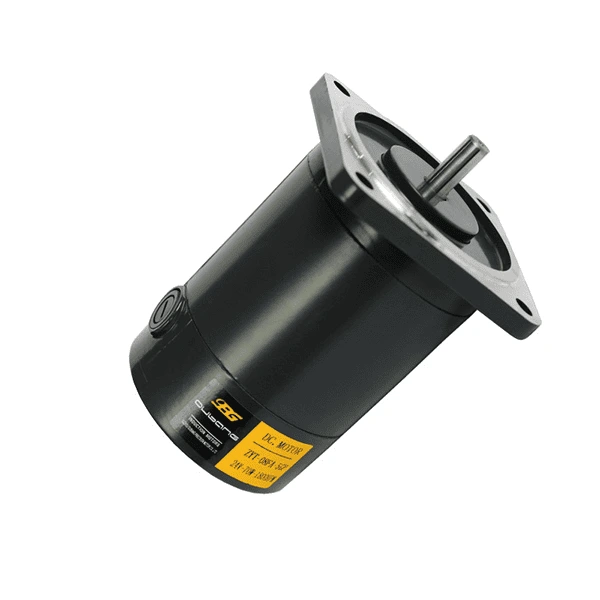

Permanent Magnet DC Brushed Gear Motor (PMDC) | High Torque 10W–1600W
Our Permanent Magnet DC Brushed Gear Motor (PMDC) series is engineered for industrial applications demanding stable torque and high reliability. This range delivers power from 10 W up to 1600 W, compatible with multiple voltages from 12 V to 220 V. With their compact size and high efficiency, these motors are ideal for precise operation in automation systems, conveyor belts, and specialized machinery. We offer various high-precision gearboxes, including Planetary, Worm, and Right-Angle types, ensuring extended operational life and low maintenance.
Product Highlights
Wide Power Range
10W–1600W
Compact Sizes
60×60-120×120mm
Voltage Options
24V/48V110V/220V
Description
Specifications
Overview
Our Permanent Magnet DC Brushed Gearmotors (PMDC) are engineered for industrial and automation applications requiring superior torque and precise motion control. With a compact, high-efficiency design, these gear motors deliver reliable performance in a small footprint. They are ideal for high-duty cycle robotics, industrial automation, patient handling medical devices, and precision CNC machinery.
Built for continuous duty with low maintenance, this versatile product line includes low RPM, high torque options for lifting and positioning, as well as high-speed DC configurations for high-throughput applications. Full custom gear motor solutions are available to meet your specific industrial and commercial requirements, designed for long-term, reliable operation.
Key Features
- High Speed Performance: Optimized for miniature high-speed DC motor applications.
- Compact & Space-Saving: Fits tight spaces without compromising performance or starting torque.
- Durable Brushed DC Motor: Reliable for continuous or intermittent use with robust construction for extended life.
- Wide Voltage Range: Available in 12V, 24V, and 48V DC options, compatible with global systems.
- Low RPM High Torque Options: Ideal for lifting, precision positioning, and high-load tasks; reduces need for external reduction.
- Easy Integration: Controlled via DC voltage or standard speed controllers (optional encoder for closed-loop feedback).
- Customizable Gear Ratios & Types: Planetary, Spur, or Worm gear options to match speed and torque requirements.
Applications
- Precision Robotics and Automation Systems (AGVs, automated valves)
- Medical Devices and Laboratory Equipment (fluid pumps, diagnostics machinery)
- Packaging and Positioning Machinery (label applicators, dosing systems)
- Motion Control Equipment (CCTV cameras, optical devices)
- Light Industrial and Commercial Machinery
- Battery-Powered Portable Equipment (low current draw, extended run-time)
| Frame Size | Power Output | Voltage Options | Max RPM | Torque Range |
|---|---|---|---|---|
| 60mm | 12–35W | 3V–220V | 1000–3000 | 0.073–0.13 Nm |
| 70mm | 20–90W | 3V–220V | 1000–3000 | 0.14–0.34 Nm |
| 80mm | 30–120W | 3V–220V | 1000–3000 | 0.19–0.45 Nm |
| 90mm | 70–300W | 3V–220V | 1000–3000 | 0.5–1.22 Nm |
| 104mm | 150–550W | 3V–220V | 1000–3000 | 0.97–2 Nm |
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
