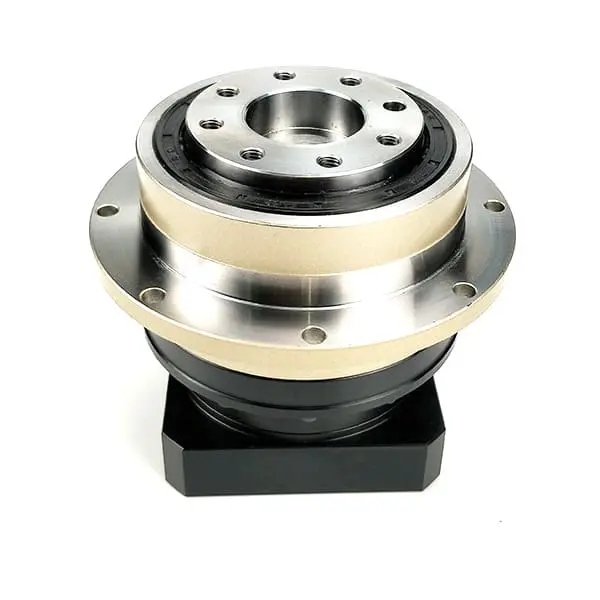

KD Series Flange Output Precision Helical Planetary Gearbox | High Rigidity
High-performance, torsionally rigid helical planetary gearbox with minimal vibration, suitable for high-load and high-speed industrial applications.
Product Highlights
Gear Ratio Range
i=3–100, stable torque for diverse applications
Backlash Accuracy
Economy ≤ 8′ / Precision ≤ 5′, ensuring positioning precision
High Efficiency
Transmission efficiency ≥95%, low energy loss
Mounting Options
Flange, foot, or shaft output for easy integration
-
Description
-
Specifications
Overview
The KD Series Helical Planetary Gearbox is engineered for applications that demand high torsional rigidity, precise torque transmission, and minimal vibration.
As a robust helical planetary gearbox, it features a standardized flange interface and a cage-style planet carrier, ensuring easy integration and stable performance even under high radial and axial loads.
Ideal for robotics, industrial automation, and high-performance machinery, the KD Series delivers superior efficiency, durability, and long service life, making it a reliable choice for demanding industrial applications in Europe and North America.
Key Features
- ⚙️ Helical Precision Line – Optimized for smooth, quiet operation under high load
- 🔄 Coaxial Helical Gearbox – Provides precise torque transmission with minimal backlash
- 🛠️ Preloaded Angular Contact Roller Bearings – Enhanced load capacity and extended service life
- 📏 Wide Gear Ratio Range – From i=4 up to i=100, suitable for diverse industrial applications
- 🧩 Extra Large Round Output Flange – Flexible mounting for versatile system integration
- 🔁 Equidirectional Rotation – Compatible with complex automation layouts
- 🌀 Cage-Style Planet Carrier & Flange Interface – Ensures torsional rigidity and high stability
Applications
The KD Series Helical Planetary Gearbox is built for torsional rigidity and stability, making it perfect for:
- 🤖 Robotics & Automation – Heavy-duty robotic arms and automation gantries
- 🏭 Machine Tools – CNC machining centers and high-torque cutting systems
- 🚚 Conveyor & Material Handling – Equipment requiring rigidity under high radial/axial loads
- 📦 Packaging & Processing Machinery – Stable torque control for precise product handling
- ⚡ Heavy Industrial Applications – Operations requiring maximum rigidity and low vibration
| Parameter | Value |
|---|---|
| Frame Sizes | 64mm, 90mm, 110mm, 140mm, 200mm |
| Gear Ratios | 4:1 – 100:1 |
| Max Input Speed | 10,000 rpm |
| Backlash (arcmin) | Stage 1 (Ratio 4–10): P0 ≤ 1′, P1 ≤ 3′, P2 ≤ 5′Stage 2 (Ratio 20–100): P0 ≤ 3′, P1 ≤ 5′, P2 ≤ 7′ |
| Noise Level | ≤ 70 dB |
| Protection Grade | IP65 |
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
