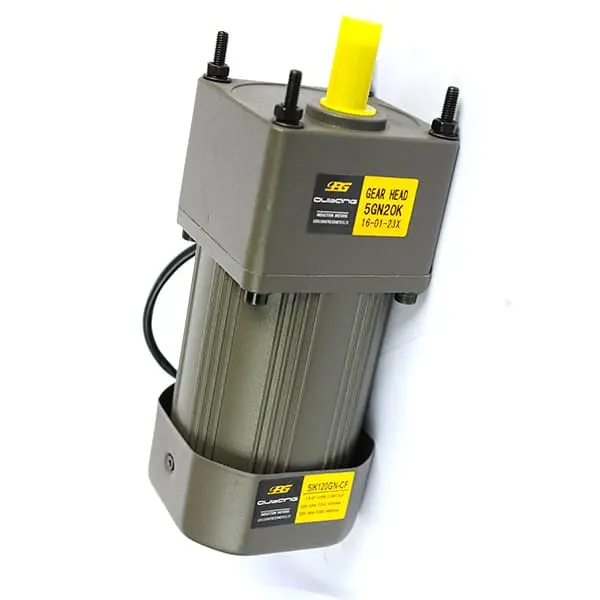

K Series AC Reversible Motor | Parallel Shaft Design
Reversible motors are designed to provide reliable forward and reverse rotation, ensuring stable torque even at low speeds or under locked-rotor conditions. With a compact structure, high reliability, and smooth directional switching, these motors are widely used in automation equipment, conveyors, packaging machinery, and industrial robots. They deliver consistent performance for applications that require frequent directional changes while maintaining durability and long service life.
Product Highlights
Wide Power Range
6W–90W
Compact Sizes
60×60–90×90mm
Voltage Options
110V/220V/380V
Forward & Reverse Rotation
Reliable performance for frequent directional changes
-
Description
-
Specifications
Overview
Our AC Reversible Motors feature a compact design, high reliability, and smooth forward/reverse operation.
Equipped with a friction disk damping brake system, they deliver fast response under frequent reversing, effectively reducing wear and extending motor life.
With optimized efficiency from ANSYS simulation, these motors ensure stable performance and lower temperature rise.
Available in 6W–90W power ratings, multiple mounting options, and gear ratios from 1:3 to 1:500, they are ideal for conveyors, packaging machinery, automation systems, and industrial robots.
Key Features
- 🔄 Forward & Reverse Operation – Smooth switching for frequent reversing applications
- 🛠️ Friction Disk Damping Brake – Reduces overshoot and minimizes wear during continuous cycles
- ⚡ Optimized by ANSYS Simulation – Improved efficiency, lower temperature rise, and stable performance
- 📏 Flexible Gear Ratios – Wide range from 1:3 to 1:500 for versatile applications
- 🧩 Multiple Mounting Options – Right-angle solid shaft, hollow shaft, and round shaft available
- ⚙️ Wide Power Range – From 6W to 120W, with frame sizes 60×60mm to 90×90mm
- 🏭 Durable Industrial Design – Compact, reliable, and long service life
Applications
The AC Reversible Motor is widely used in industries requiring compact size, frequent reversing, and stable torque output, such as:
- 🚚 Conveyor systems
- 📦 Packaging machinery
- 🏭 Industrial automation equipment
- 🤖 Robotics and assembly lines
- 🧵 Textile and printing machinery
- 🩺 Medical devices
| Parameter | Range / Option |
|---|---|
| Power Output | 6W – 90W |
| Voltage / Frequency | AC 220V, 50Hz (customizable) |
| Speed Ratio | 1:3 – 1:500 |
| Frame Size | 60×60mm – 90×90mm |
| Mounting Types | Right-angle solid, hollow, round |
| Motor Type | Single-phase reversible motor |
| Efficiency Optimization | ANSYS FEA simulation design |
| Brake System | Friction disk damping |
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
