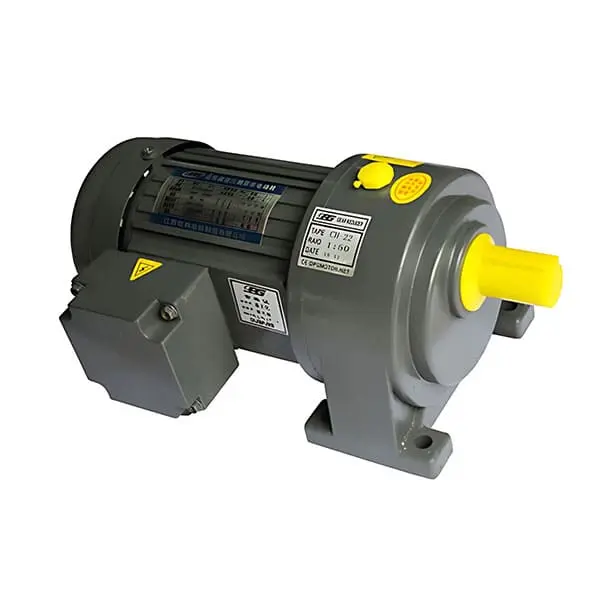

Horizontal Foot Mounted Gear Motor 100W–3700W | Industrial Use
Our Small Horizontal Gear Motor offers reliable performance with a power range of 100W–3700W. Featuring a foot-mounted parallel shaft design, it delivers high torque with reduced output speed, low noise, and stable operation for industrial applications.
Product Highlights
Wide Power Range
100W–3700W
Shaft Diameters
18mm–50mm
Voltage Options
220V/380V
-
Description
-
Specifications
Overview
The Small Horizontal Gear Motor is a parallel shaft induction geared motor designed for industrial automation and power transmission.
With an output range from 100W (1/8 HP) to 3700W (5 HP) and standard gear ratios from 1:3 up to 1:1800, it provides stable speed reduction, high torque output, and reliable operation.
Its foot-mounted design allows easy installation on machine bases, conveyors, and production systems, making it a flexible choice for diverse industrial applications.
Key Features
- ⚙️ Wide Power Range – 100W to 3700W (1/8 HP – 5 HP)
- 🔌 Voltage Options – Single-phase, three-phase, or custom voltages available
- 📏 Flexible Gear Ratios – Standard from 1:3 up to 1:1800 for versatile speed reduction
- 🛠️ Durable Housing – Lightweight aluminum alloy with protective baking paint finish
- 🔄 Reliable Operation – High torque, low output speed, smooth and quiet performance
- ❄️ Optimized Cooling – Excellent heat dissipation ensures low temperature rise
- 🛡️ Quality Assurance – Precision gear machining and strict oil-leakage inspection
- ✅ Optional Configurations – CE/UL certification or IE3 high-efficiency motor options
Applications
The Small Horizontal Gear Motor is widely used in industries requiring high torque, compact design, and reliable speed control, such as:
- 🚚 Conveyor and logistics systems
- 📦 Packaging machinery
- 🏭 Industrial automation equipment
- ⚙️ Production line machinery
- 🧵 Textile and printing equipment
Horizontal vs Vertical Gear Motors – Which One to Choose?
When selecting a gear motor, two common installation types are Horizontal Gear Motors and Vertical Gear Motors.
Each design has specific advantages depending on installation space, torque requirements, and application type.
| Feature / Aspect | Horizontal Gear Motor | Vertical Gear Motor |
|---|---|---|
| Design | Parallel shaft, foot-mounted on machine bases or conveyors | Flange-mounted directly onto vertical machinery setups |
| Torque & Performance | Stable torque transmission with wide gear ratio range | High torque at low speed, optimized for vertical loads |
| Space Requirement | Requires horizontal installation space, longer layout | Saves footprint by mounting vertically, ideal for compact setups |
| Cooling & Durability | Aluminum alloy housing ensures heat dissipation | Vertical mounting tested for oil leakage and stable lubrication |
| Best Applications | Conveyors, packaging lines, automation equipment | Textile, printing, vertical machinery, and heavy-duty reducers |
👉 Summary:
Choose a Horizontal Gear Motor when you need stable torque transmission and easy base-mounted installation, such as in conveyors and automation lines.
Choose a Vertical Gear Motor when you require compact footprint and direct flange-mounted integration, such as textile, printing, or specialized vertical machinery.
-
Power Range: 100W – 3700W
-
Output Speed: Depends on gear ratio
-
Gear Ratio: 1:3 – 1:1800
-
Mounting Type: Foot mounted (horizontal installation)
-
Voltage: 110V, 220V, 380V, or customized
-
Housing Material: Aluminum alloy (with baking paint treatment)
-
Cooling Method: Natural cooling / fan cooling
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
