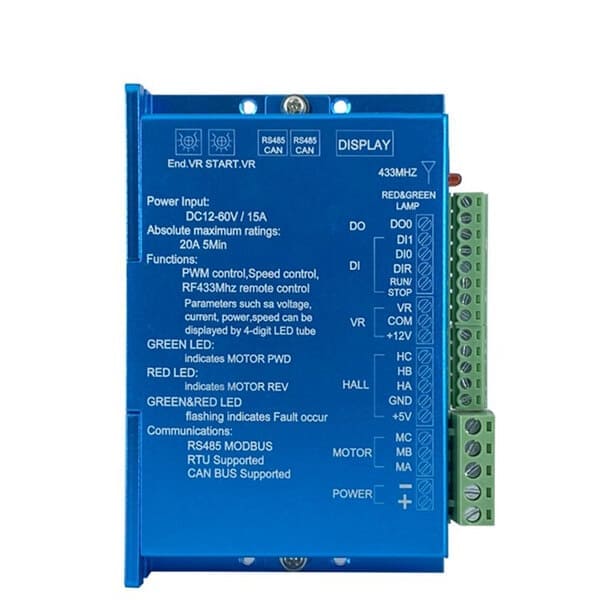

DC/BLDC Motor Controller – 12–60 V PWM / 15–750 W

Overview

Our DC/BLDC Motor Controller (12–60 V, 15–750 W) delivers flexible and reliable motion control for industrial automation.
It supports brushed DC, BLDC, and PMSM motors, provides multi-function I/O and keyboard control, and integrates an easy PLC motion kernel for reciprocating motion, speed regulation, and synchronization—without a separate controller.
With RS485 (MODBUS-RTU) and CAN BUS communication, optional RF433, and LCD/LED display panels, this compact controller enables fast integration, smart diagnostics, and stable operation in space-constrained machines.

Key Features

• Wide Voltage & Power – 12–60 VDC input, 15–750 W output range
• Multi-Motor Compatibility – Works with brushed DC, BLDC, PMSM
• Smart Motion Control – Built-in easy PLC: positioning, reciprocating motion, jogging, speed loop; host–slave synchronization
• Multi-Speed & I/O – Multi-speed presets, multi-function inputs/outputs, keyboard control, analog/PWM speed input
• Industrial Communications – RS485 (MODBUS-RTU) and CAN BUS; optional RF433 wireless module
• Display Options – External LCD or LED panel for real-time status and parameter setting
• Master–Slave Networking – Host can control up to 100 slave units for coordinated operation
• Comprehensive Protection – Over-voltage, over-current, over-temperature, stall, and reverse-polarity protection
• Status Indicators – Clear LED indications for run/stop, direction, faults, and mode

Applications

• AGVs & mobile robots, conveyor and packaging lines
• Doors, gates, pumps, fans, and compact industrial machinery
• Indexing & reciprocating mechanisms, light automation cells
• OEM systems requiring networked motion (RS485/CAN) and compact controllers

Specifications
