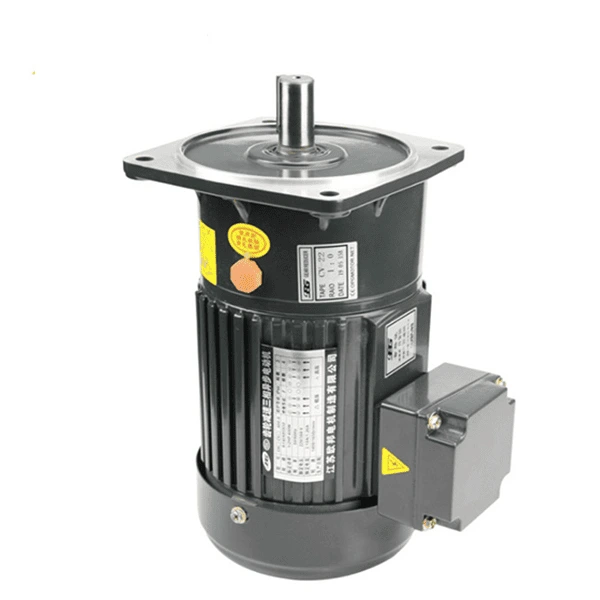

CV Series Vertical AC Small Gear Motor | Compact & Low Noise

Overview

The CV Series Vertical AC Small Gear Motor is a parallel shaft gearmotor engineered for high torque and low output speed applications.
Its multi-stage helical gear design ensures smooth, low-noise operation, minimal temperature rise, and long service life.
The vertical flange mount allows easy, direct installation onto machinery, while strict quality inspections guarantee stable performance without oil leakage.

Constructed from lightweight aluminum alloy with durable baking paint treatment, the CV Series is compact, heat-resistant, and easy to handle.
Optional configurations include brake assemblies, UL/CE certification, and high-efficiency IE3 motors, providing excellent flexibility for diverse industrial requirements.

Key Features

• ⚙️ High Torque Performance – Parallel shaft vertical AC small gear motor with multi-stage helical gears for low RPM output
• 🔄 Easy Installation – Flange mount design for direct mounting on machinery
• 🛠️ Reliable Operation – Low-noise, minimal temperature rise, and long service life
• 📏 Durable & Lightweight – Aluminum alloy housing with high heat dissipation and compact size
• 🧩 Flexible Options – Brake assembly, IE3 high-efficiency motors, or UL/CE certified versions available
• 🔁 Maintenance-Free – Integrated grease anti-leakage design ensures reliability
• 🌀 Wide Range – Power from 100W to 3700W (1/8 HP – 5 HP) and reduction ratio from 3:1 to 1800:1

Applications

The CV Series Vertical AC Small Gear Motor is widely used in applications requiring low speed, high torque, and vertical installation, such as:

• 🚚 Conveyor and material handling systems
• 📦 Packaging and processing machinery
• 🏭 Industrial automation equipment
• 🧵 Textile and printing machinery
• ⚡ High-efficiency energy-saving equipment (IE3 compliant)
