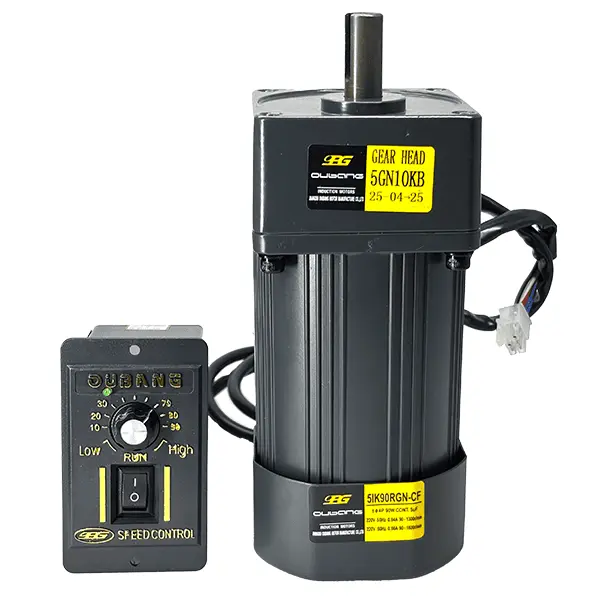

90W 220V AC Variable Speed Gear Motor | 5IK90RGN-CF
The 90W AC variable speed gear motor delivers precise speed regulation and stable torque performance. Compact size, dual voltage (110V/220V), and reversible operation make it ideal for automation, conveyors, and testing systems.
Product Highlights
90W Output Power
Provides stable torque and reliable performance for automation, conveyors, and testing systems.
Compact Frame Size
90×90mm aluminum housing ensures excellent heat dissipation and long service life.
Dual Voltage Options
Available in AC 110V and 220V for global equipment compatibility.
Smooth Speed Regulation
Works with an external speed controller for accurate and stable speed adjustment.
-
Description
-
Specifications
Overview
The 90W Single-Phase AC Variable Speed Gear Motor provides reliable torque and stable speed regulation for automation and industrial applications.
It supports clockwise and counterclockwise rotation with a smooth adjustable range of 90–1300 r/min at 50Hz and 90–1600 r/min at 60Hz.
The 90W motor belongs to the K Series AC Speed Control Motors, designed for applications that demand precise variable speed control and continuous operation.
It features compact dimensions, high efficiency, and a dual-voltage configuration suitable for global markets.
When paired with an external US-52 or AS-52 type speed controller, the motor enables smooth acceleration, soft start, and accurate speed adjustment.
Both 110V and 220V models are available to meet a wide range of equipment requirements in conveyors, labeling systems, and testing devices.
Key Features
- ⚙️ Wide Speed Control Range – 90–1300 r/min (50Hz) / 90–1600 r/min (60Hz)
- 🔁 Reversible Operation – Supports both CW and CCW rotation with stable torque
- ⚡ Dual Voltage Options – AC 110V or 220V, compatible with various industrial standards
- 🏗️ Compact & Durable Design – Aluminum housing with excellent heat dissipation
- 🎚️ External Speed Controller – Smooth soft start and stop, precise variable speed control
- 🔩 Multiple Gear Ratios – Compatible with 5GN/5GU gearboxes (ratio 3~500)
Applications
The 90W AC adjustable speed motor is ideal for compact machinery that requires controllable torque and precise variable speed, including:
- 🧪 Laboratory automation and testing systems
- 📦 Conveyor and labeling machines
- ⚙️ Packaging and food processing equipment
- 🧰 Industrial automation and assembly lines
Specifications
| Model | 5IK90RGN(GU)-AF | 5IK90RGN(GU)-CF |
|---|---|---|
| Output Power | 90W | 90W |
| Voltage | AC 110V | AC 220V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1300 / 1600 | 1300 / 1600 |
| Speed Control Range (r/min) | 90–1300 @50Hz / 90–1600 @60Hz | 90–1300 @50Hz / 90–1600 @60Hz |
| Starting Torque (kg·cm) | 4.8 | 4.8 |
| Rated Torque (kg·cm) | 7.1 | 7.1 |
| Rated Current (A) | 1.28 | 0.64 |
| Capacitor (µF / V) | 24 / 250V | 5 / 450V |
| Motor Type | Single-phase AC induction gear motor (external speed controller) | |
| Controller Function | Adjustable speed, soft start & slow stop | |
| Shaft Options | Round shaft / Keyed shaft | |
| Cooling / Protection / Insulation | Natural air cooling / IP40–IP54 (by model) / Class B–F | |
| Rated Time | Continuous | |
Both 12mm and 15mm output shaft diameters are available for the 5GN/5GU gearboxes, ensuring compatibility with various equipment designs.
Gearbox and Performance (with 5GN / 5GU)
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 500 | 300 | 150 | 75 | 50 | 30 | 15 | 7.5 | 5.0 | 3.0 |
| Output Speed (r/min, 60Hz) | 600 | 360 | 180 | 90 | 60 | 36 | 18 | 9 | 6 | 3.6 |
| Max Torque (kg·cm) | 16.4 | 27.3 | 55 | 110 | 148 | 200 | 200 | 200 | 200 | 200 |
All 90W AC adjustable speed motors from OUBANG Motor are compatible with 5GN and 5GU gearheads, supporting gear ratios up to 1:500 and maximum torque up to 200 kg·cm for demanding automation applications.
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
