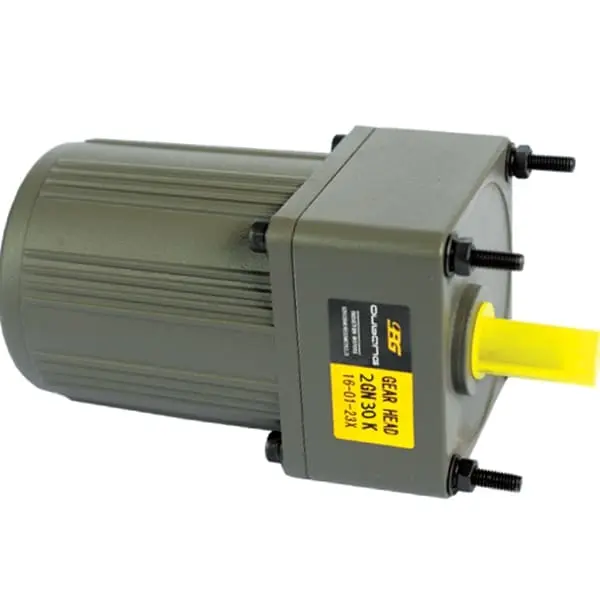

6W 220V AC Variable Speed Gear Motor | 2IK6RGN-C
Compact 6W AC variable speed gear motor with precise speed control, dual voltage options (110V/220V), and reliable torque for automation and testing devices.
Product Highlights
6W Output Power
Compact low-power motor ideal for precise motion in light-duty automation and control systems.
Small Frame Size
Space-saving 60×60mm frame, compatible with 2GN gearboxes for easy integration in limited spaces.
Dual Voltage Options
Available in AC 110V and 220V versions to support global equipment compatibility.
Smooth Speed Regulation
Works with an external speed controller for soft start, slow stop, and accurate variable speed control.
Description
Specifications
Overview
The 6W Single-Phase AC Gear Motor with Speed Controller provides precise variable speed adjustment and reliable torque output for compact automation and testing equipment.
It supports clockwise and counterclockwise rotation with a smooth control range of 90–1250 r/min at 50Hz and 90–1550 r/min at 60Hz.
The 6W motor belongs to the K Series miniature AC gear motors, widely adopted in automation, laboratory testing, and light-duty industrial control devices.
This small-size motor is ideal for applications that require accurate low-speed performance, such as laboratory instruments, conveyors, and micro production lines.
When paired with a US-52 or UX-52 speed controller, users can easily achieve soft start, slow stop, and stable speed regulation.
Both 110V and 220V voltage options are available to meet global industrial standards.
Key Features
- ⚙️ Wide Speed Control Range – 90–1250 r/min (50Hz) / 90–1550 r/min (60Hz)
- 🔄 Reversible Operation – Supports both CW and CCW rotation
- ⚡ Voltage Options – 110V / 220V single-phase AC versions
- 📏 Compact and Lightweight Design – 60mm frame size with aluminum alloy housing
- 🎛️ External Speed Controller – Compatible with US-52 or UX-52 controllers for smooth, precise adjustment
- 🔩 Various Gear Ratios – Interchangeable with 2GN gearboxes (ratio 3~300)
Applications
The 6W AC variable speed gear motor is suitable for light-duty automation and precision control equipment, including:
- 🧪 Laboratory and testing instruments
- 📦 Small conveyors and feeder systems
- 🏭 Compact automation mechanisms
- 🧰 Precision positioning or inspection devices
Specifications
| Model | 2IK6RGN-A | 2IK6RGN-C |
|---|---|---|
| Output Power | 6W | 6W |
| Voltage | AC 110V | AC 220V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1250 / 1550 | 1250 / 1550 |
| Speed Control Range (r/min) | 90–1250 @50Hz / 90–1550 @60Hz | 90–1250 @50Hz / 90–1550 @60Hz |
| Starting Torque (kg·cm) | 0.28 | 0.35 |
| Rated Torque (kg·cm) | 0.25 | 0.35 |
| Rated Current (A) | 0.25 | 0.3 |
| Capacitor (µF / V) | 3 / 250V | 3 / 450V |
| Motor Type | Single-phase AC induction gear motor (external speed controller) | |
| Controller Function | Adjustable speed, soft start & slow stop | |
| Shaft Options | Round shaft / Keyed shaft | |
| Cooling / Protection / Insulation | Natural air cooling / IP40–IP54 (by model) / Class B–F | |
| Rated Time | Continuous | |
Gearbox and Performance (with 2GN)
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 180 | 250 |
|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 500 | 300 | 150 | 75 | 50 | 30 | 15 | 8.3 | 6 |
| Output Speed (r/min, 60Hz) | 600 | 360 | 180 | 90 | 60 | 36 | 18 | 10 | 7.2 |
| Max Torque (kg·cm) | 1.2 | 2.0 | 3.8 | 7.4 | 9.8 | 14.8 | 24.5 | 24.5 | 24.5 |
All 6W AC variable speed motors from OUBANG Motor are compatible with 2GN gearheads, supporting gear ratios up to 1:300 and providing maximum torque up to 24.5 kg·cm for precise low-speed applications.
