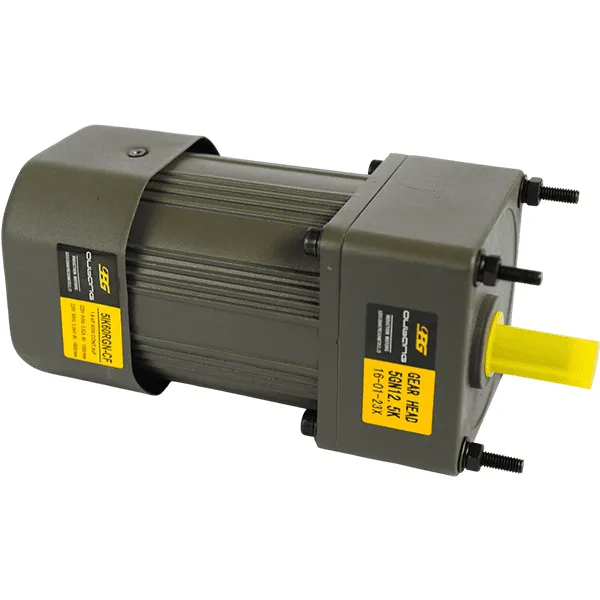

60W 220V AC Variable Speed Gear Motor | 5IK60RGN-CF
Compact 60W AC variable speed gear motor for industrial automation, featuring adjustable speed control, stable torque, and optional 12mm or 15mm output shafts. Ideal for conveyors, labeling, and assembly systems.
Product Highlights
60W Output Power
Provides stable torque and consistent performance for automation and testing equipment.
Compact Frame Size
90×90mm aluminum housing ensures efficient heat dissipation and long service life.
Dual Voltage Options
Available in AC 110V and 220V for flexible installation across global markets.
Precise Speed Control
Works seamlessly with an external controller for smooth acceleration and stable speed adjustment.
-
Description
-
Specifications
Overview
The 60W AC Gear Motor with Speed Controller delivers consistent torque and precise speed regulation for industrial automation and light-duty machinery. It supports both clockwise and counterclockwise rotation with a smooth adjustable range of 90–1600 r/min.
Built with a durable aluminum alloy housing and continuous-duty design, this motor ensures high efficiency and long lifespan. When used with the US-52 type speed controller, users can easily achieve stable speed adjustment for production lines, conveyors, and testing systems.
Multiple voltage options (110V / 220V) and output shaft diameters (12mm / 15mm) make this 60W motor suitable for a wide range of automation equipment. ⚙️
Key Features
- ⚙️ Wide Speed Control Range – 90–1300 r/min (50Hz) / 90–1600 r/min (60Hz)
- 🔄 Reversible Operation – Supports both CW and CCW rotation
- ⚡ Voltage Options – 110V / 220V single-phase AC
- 🏗️ Compact and Durable Design – 90mm frame, high-strength aluminum casing
- 🧭 Precise Speed Control – Compatible with external US-52 controller
- 🔩 Various Gear Ratios – 3~500, compatible with 5GN series gearboxes
Applications
The 60W AC variable speed gear motor is ideal for devices requiring stable speed regulation and continuous operation, including:
- 🛠️ Automation conveyors and mini production lines
- 📦 Packaging, labeling, and sorting machinery
- 🧪 Laboratory and testing equipment
- 🏭 Small-scale factory machinery
- 🚗 Automotive or robotics prototypes
Specifications
| Model | 5IK60RGN(GU)-AF | 5IK60RGN(GU)-CF |
|---|---|---|
| Output Power | 60W | 60W |
| Voltage | AC 110V | AC 220V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1300 / 1600 | 1300 / 1600 |
| Speed Control Range (r/min) | 90–1300 @50Hz / 90–1600 @60Hz | 90–1300 @50Hz / 90–1600 @60Hz |
| Starting Torque (kg·cm) | 3.3 | 3.3 |
| Rated Torque (kg·cm) | 5.0 | 5.0 |
| Rated Current (A) | 1.04 | 0.52 |
| Capacitor (μF / V) | 16 / 250V | 4.0 / 450V |
| Motor Type | Single-phase AC induction gear motor (external speed controller) | |
| Controller Function | Adjustable speed, soft start & slow stop | |
| Shaft Options | Round shaft / Keyed shaft | |
| Cooling / Protection / Insulation | Natural air cooling / IP40–IP54 (by model) / Class B–F | |
| Rated Time | Continuous | |
Both 12mm and 15mm output shaft diameters are available for the 5GN/5GU gearboxes, ensuring compatibility with various equipment designs.
Gearbox and Performance (with 5GN / 5GU)
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 75 | 100 | 200 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 500 | 300 | 150 | 75 | 50 | 30 | 20 | 15 | 7.5 | 3 |
| Output Speed (r/min, 60Hz) | 600 | 360 | 180 | 90 | 60 | 36 | 24 | 18 | 9 | 3.6 |
| Max Torque (kg·cm) | 11.0 | 17.8 | 33.8 | 72.5 | 105 | 147 | 147 | 147 | 147 | 147 |
All 60W AC adjustable speed motors from OUBANG Motor are compatible with 5GN and 5GU gearheads, supporting gear ratios up to 1:500 and providing maximum torque up to 147 kg·cm for stable low-speed performance in automation systems.
Selection & Service
🧰 Available options include voltage, power, reduction ratio, flange/shaft size, mounting direction, accessories, and lead time.
📞 Contact us to discuss your customized requirements or OEM projects.
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
