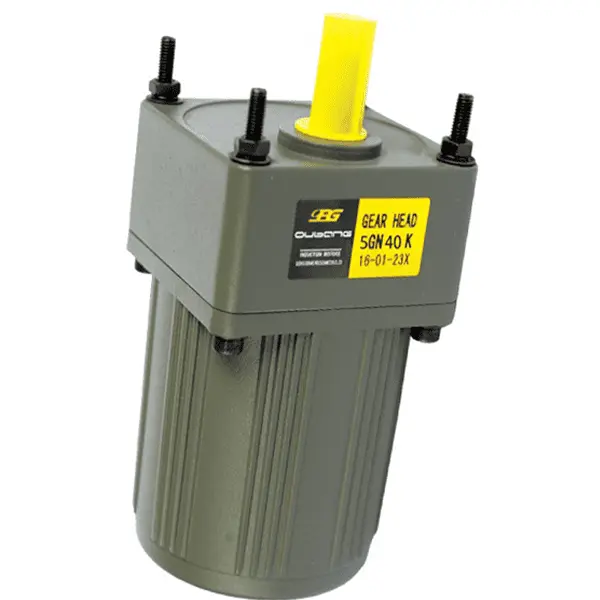

40W 220V AC Variable Speed Gear Motor | 5IK40RGN-C
Compact 40W AC variable speed gear motor with speed range 90–1600rpm, available in 110V and 220V. Designed for light-duty automation, conveyors, and packaging systems requiring stable torque and smooth speed adjustment.
Product Highlights
40W Output Power
Provides efficient torque and reliable operation for light-duty automation and conveyors.
Compact Size
Durable aluminum housing ensures excellent heat dissipation and long service life.
Dual Voltage Options
Available in AC 110V (5IK40RGN-A) and AC 220V (5IK40RGN-C) for worldwide compatibility.
Smooth Speed Adjustment
Works seamlessly with US-52 / UX-52 speed controllers for precise regulation.
-
Description
-
Specifications
Overview
The 40W AC variable speed gear motor provides stable, adjustable, and quiet performance for light-duty automation and precision machinery. With dual voltage options (110V/220V) and compact construction, it is ideal for conveyors, testing devices, and packaging systems. Compatible with external AC speed controllers such as US-52 or UX-52, this model ensures precise speed regulation and long-term reliability.
Both 5IK40RGN-A (AC110V) and 5IK40RGN-C (AC220V) models are designed for continuous operation, offering efficient torque, durable aluminum housing, and an optional cooling fan for enhanced heat dissipation when required.
Key Features
- ⚙️ Efficient Output Power: 40W AC induction motor delivers reliable torque for light automation, conveyors, and testing systems.
- 🎛️ Adjustable Speed Range: 90–1300 r/min @50Hz and 90–1600 r/min @60Hz, providing flexible and precise motion control.
- 🔌 Dual Voltage Options: Available in AC110V (5IK40RGN-A) and AC220V (5IK40RGN-C) for worldwide use.
- 🔄 External Speed Regulation: Works seamlessly with US-52 / AS-52 controllers for smooth speed adjustment and soft start/stop.
- 🧊 Optional Fan Cooling: Standard fanless version ensures quiet operation; optional cooling fan available for higher thermal demand.
- 🔩 Two Shaft Diameters: Compatible with 5GN gearheads in 12mm and 15mm shaft versions for flexible installation.
Applications
- Conveyor systems and material feeders
- Testing and inspection machinery
- Packaging and labeling equipment
- Automation and laboratory devices
- Small machine tools and mechanical fixtures
Specifications
| Model | 5IK40RGN-A | 5IK40RGN-C |
|---|---|---|
| Output Power | 40W | 40W |
| Voltage | AC 110V | AC 220V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1200 / 1500 | 1200 / 1500 |
| Speed Control Range (r/min) | 90–1300 @50Hz / 90–1600 @60Hz | 90–1300 @50Hz / 90–1600 @60Hz |
| Starting Torque (kg·cm) | 1.9 | 1.9 |
| Rated Torque (kg·cm) | 3.0 | 3.0 |
| Rated Current (A) | 1.10 | 0.55 |
| Capacitor (µF / V) | 10 / 250V | 2.5 / 450V |
| Motor Type | Single-phase AC induction gear motor (external speed controller) | |
| Controller Function | Adjustable speed, smooth start & stable stop | |
| Shaft Options | Round shaft / Gear shaft | |
| Cooling Type | Standard: Fanless; Optional: External fan version available | |
| Gearhead Shaft Diameter | 12mm / 15mm (customizable based on gearbox model) | |
| Cooling / Protection / Insulation | Natural air cooling / IP40–IP54 / Class B–F | |
| Rated Time | Continuous | |
Gearbox and Performance (with 5GN)
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 250 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 500 | 300 | 150 | 75 | 50 | 30 | 15 | 7.5 | 6 | 3 |
| Output Speed (r/min, 60Hz) | 600 | 360 | 180 | 90 | 60 | 36 | 18 | 9 | 7.2 | 3.6 |
| Max Torque (kg·cm) | 7.4 | 11.8 | 22.8 | 46.2 | 64.8 | 98.5 | 98.5 | 98.5 | 98.5 | 98.5 |
All 40W AC variable speed motors from OUBANG Motor are compatible with 5GN gearheads, supporting gear ratios up to 1:500 and providing maximum torque up to 98.5 kg·cm for precise low-speed performance.
Selection & Service
We provide flexible options for voltage, power, speed range, torque ratio, flange size, and mounting orientation. Gearbox shaft diameters are available in 12mm or 15mm. The standard motor is fanless, while an optional fan-cooled version can be supplied upon request. Custom shaft designs, controller matching, and OEM accessory kits are also available to meet your application needs.
