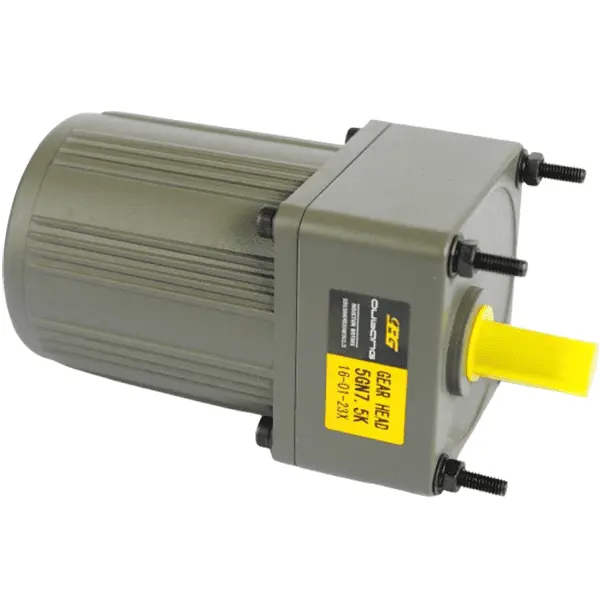

40W AC Induction Gear Motor with Gearbox | 5IK40GN-C
The 40W AC Induction Gear Motor with Gearbox is available in two models: 5IK40GN-C (fixed-speed) and 5IK40GN-Y (variable-speed with inverter). With 12mm or 15mm shaft diameter gearheads, these AC geared motors deliver reliable performance and flexibility for industrial automation applications.
Product Highlights
40W Output Power
Provides high torque and smooth adjustable speed for conveyors, packaging, and automation lines.
Compact Frame Size
90×90mm aluminum housing offers excellent heat dissipation and long service life.
Dual Voltage Options
Available in single-phase 220V and three-phase 220V/380V versions to meet different equipment requirements.
Variable Speed with Inverter
Three-phase version offers adjustable speed when combined with a frequency inverter.
-
Description
-
Specifications
Overview
The 40W AC Induction Gear Motor with Gearbox is available in two models: 5IK40GN-C (fixed-speed) and 5IK40GN-Y (variable-speed with inverter).
Designed as a compact small AC gear motor for automation equipment, it delivers stable performance and flexible control for light-duty industrial use.
With 12mm or 15mm shaft diameter gearheads, this AC geared motor 40W provides high torque, long service life, and versatile installation options for various industrial gear motor applications.
Key Features
- ⚙️ Power Output: 40W rated power ensures efficient torque transmission for compact industrial machinery.
- 🔩 Gearhead Compatibility: Works with 5GN (standard) and 5GU (heavy-duty) gearboxes to meet both general and high-torque requirements.
- 🔧 Model Options: 5IK40GN-C (Fixed-speed) and 5IK40GN-Y (Variable-speed with inverter) for precise control in automation systems.
- 🔩 Shaft Sizes: Available with 12mm or 15mm output shafts for different gearbox configurations.
- 🛠️ Reliable Design: Durable aluminum frame with excellent heat dissipation ensures consistent operation and minimal maintenance.
- ⚡ Voltage Choices: Single-phase 220V and three-phase 220V/380V versions available for flexible integration.
Applications
The 40W AC Induction Gear Motor with Gearbox is widely used across multiple industries that require smooth motion and compact power transmission:
- 🚚 Conveyors: Ensures efficient motion control for conveyor systems with minimal vibration and noise.
- 🤖 Automation Systems: Reliable for small-scale industrial automation requiring adjustable speed and precise control.
- 🏭 Industrial Machinery: Ideal for light-duty automation lines using AC geared motors with stable torque output.
- 📦 Packaging Equipment: Suitable for packaging systems that demand consistent and accurate speed regulation.
- ⚙️ Material Handling Equipment: Perfect for handling systems requiring both power and speed stability.
All OUBANG 40W AC Induction Gear Motors with Gearbox are customizable to fit various automation and machinery applications.
Specifications
| Parameter | 5IK40GN-C (Fixed-speed) | 5IK40GN-Y (Variable-speed with inverter) |
|---|---|---|
| Output Power | 40W | 40W |
| Voltage | Single-phase 220V | Three-phase 220V/380V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1300/1600 | 1300/1600 |
| Speed Control Range (r/min) | Fixed Speed | Variable Speed (adjustable with inverter) |
| Starting Torque (kg·cm) | 2.7 | 9.7 |
| Rated Torque (kg·cm) | 3.0 | 3.0 |
| Rated Current (A) | 0.33 | 0.31 / 0.18 |
| Capacitor (μF / V) | 2.5 / 450V | — |
Both 12mm and 15mm output shaft diameters are available. The standard type is fanless, while optional fan-cooled versions are offered upon request.
Gearbox and Performance (with 5GN / 5GU)
The 40W AC Induction Gear Motor can be matched with 5GN standard gearheads or 5GU heavy-duty gearheads depending on the torque requirements of your equipment.
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 180 | 300 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 500 | 300 | 150 | 75 | 50 | 30 | 15 | 8.3 | 5 | 3 |
| Output Speed (r/min, 60Hz) | 600 | 360 | 180 | 90 | 60 | 36 | 18 | 10 | 6 | 3.6 |
| Max Torque (kg·cm) | 7.4 | 11.8 | 22.8 | 46.2 | 64.8 | 98.5 | 98.5 | 98.5 | 98.5 | 98.5 |
All 40W AC Induction Gear Motors with 5GN/5GU gearboxes from OUBANG Motor offer stable output, compact design, and long lifespan—ideal for conveyors, automation lines, and compact industrial devices.
Selection & Service
We offer flexible options for voltage, power, torque ratio, flange size, and mounting orientation.
Gearbox shaft diameters are available in 12mm or 15mm.
The standard motor is fanless, but an optional fan-cooled version can be provided.
Custom shaft designs, controller matching, and OEM accessory kits are also available to meet your automation application needs.
Explore more OUBANG AC Gear Motors such as
25W AC Speed Control Motor,
60W Induction Gear Motor,
90W AC Gear Motor with Gearbox, and
250W AC Parallel Shaft Gearmotor.
