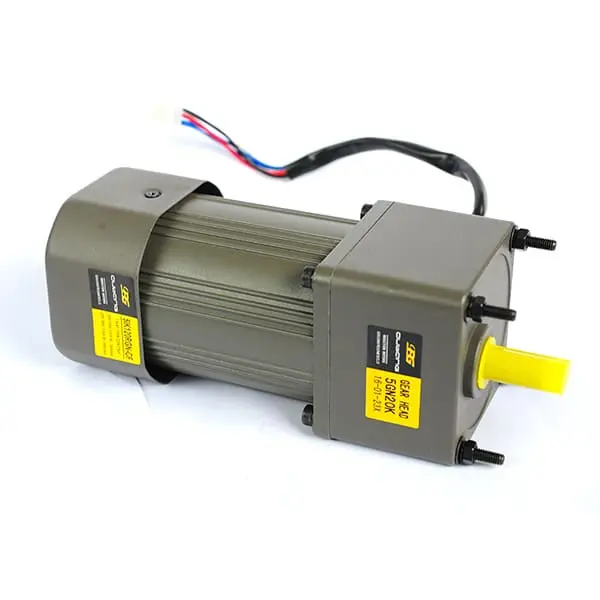

120W 220V AC Variable Speed Gear Motor | 5IK120RGN-C
Our 120W AC variable speed gear motor delivers smooth acceleration and deceleration with precise speed control. Ideal for conveyors, automation systems, and industrial equipment.
Product Highlights
120W Output Power
Provides stable torque and reliable performance for conveyors, automation systems, and industrial equipment.
Compact Design
Compact 90×90mm frame size, compatible with standard 5GN/5GU gearboxes for flexible installation.
Dual Voltage Options
Operates on 110V or 220V AC power, supporting both single-phase and three-phase configurations.
Precise Speed Regulation
Enables smooth acceleration and deceleration with accurate control when paired with a speed controller.
-
Description
-
Specifications
Overview
The 120W AC Variable Speed Gear Motor is designed for applications that demand both torque transmission and adjustable speed performance.
Paired with a dedicated speed controller, this motor supports soft start, gradual acceleration, and controlled deceleration, protecting machinery and improving efficiency.
Its compact parallel shaft design makes it suitable for space-limited installations while ensuring reliable long-term operation.
Key Features
- ⚙️ Power Output – 120W AC motor with integrated gearbox for stable torque transmission.
- ⚡ Voltage Options – Single-phase AC 110V / 220V, compatible with global power systems.
- 🔁 Variable Speed Control – Adjustable speed range (90–1300 @50Hz / 90–1600 @60Hz) with smooth acceleration and deceleration.
- 🔩 Wide Gear Ratios – Supports gear ratios from 1:3 up to 1:500 with 5GN/5GU gearheads for high-torque performance.
- 🧱 Durability – High-quality bearings and IP54 protection ensure long service life and reliability.
Applications
The 120W AC Variable Speed Gear Motor is ideal for industries requiring adjustable speed and reliable torque transmission, such as:
- 🚚 Conveyor systems
- 📦 Packaging machines
- 🏭 Automation equipment
- ⚡ Material handling systems
Specifications
| Model | 5IK120RGU-AF / 5IK120RGN-AF | 5IK120RGU-CF / 5IK120RGN-CF |
|---|---|---|
| Output Power | 120W | 120W |
| Voltage | AC 110V | AC 220V |
| Frequency | 50/60Hz | 50/60Hz |
| Poles | 4 | 4 |
| Rated Speed (r/min) | 1300 / 1600 | 1300 / 1600 |
| Speed Control Range (r/min) | 90–1300 @50Hz / 90–1600 @60Hz | 90–1300 @50Hz / 90–1600 @60Hz |
| Starting Torque (kg·cm) | 5.5 | 6.5 |
| Rated Torque (kg·cm) | 7.5 | 7.5 |
| Rated Current (A) | 1.62 | 0.81 |
| Capacitor (µF / V) | 25 / 250V | 7 / 450V |
| Motor Type | Single-phase AC induction gear motor (external speed controller) | |
| Controller Function | Adjustable speed, soft start & slow stop | |
| Shaft Options | Round shaft / Keyed shaft | |
| Cooling / Protection / Insulation | Natural air cooling / IP40–IP54 (by model) / Class B–F | |
| Rated Time | Continuous | |
Both 12mm and 15mm output shaft diameters are available for the 5GN/5GU gearboxes, ensuring compatibility with various equipment designs.
Gearbox and Performance (with 5GN / 5GU)
| Reduction Ratio | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 500 |
|---|---|---|---|---|---|---|---|---|---|
| Output Speed (r/min, 50Hz) | 500 | 300 | 150 | 75 | 50 | 30 | 15 | 7.5 | 3 |
| Output Speed (r/min, 60Hz) | 600 | 360 | 180 | 90 | 60 | 36 | 18 | 9 | 3.6 |
| Max Torque (kg·cm) | 21.8 | 36.4 | 65.4 | 118 | 196 | 200 | 200 | 200 | 200 |
Supports gear ratios up to 1:500 with 5GN/5GU gearheads, providing high torque output up to 200 kg·cm for demanding applications.
Certifications
Quality Management
Environmental Standard
European Conformity
China Compulsory Cert
