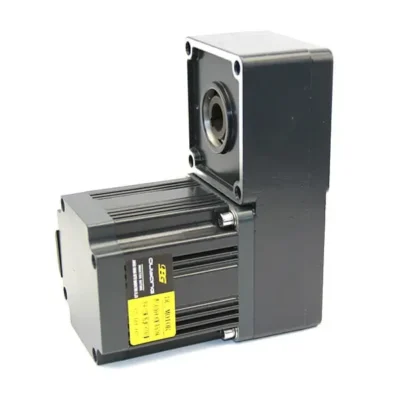

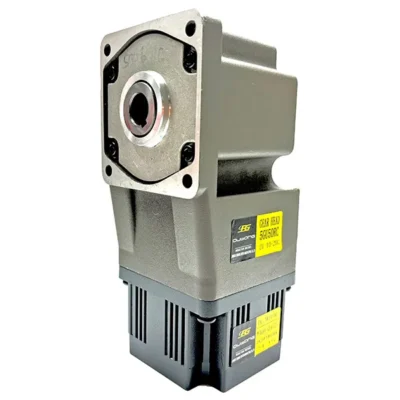

Brushless DC Right Angle Gear Motor

Brushless DC Right Angle Gear Motors from Oubangmotor combine a quiet, maintenance-free BLDC drive with a compact 90-degree gearbox, delivering stable, high-torque performance in tight spaces. Ideal for industrial conveyors, corner transfers, automatic door/gate operators, and compact automation systems. Available in a wide voltage range from 3V to 220V DC, with matched controllers and encoder feedback for precise speed and position control. Customizable options ensure the solution fits your specific application needs.

High-Performance Brushless DC Right Angle Gear Motors

This integrated design combines an efficient BLDC motor with a robust 90° gearhead (reducer) to deliver maximum torque at very low speeds while maintaining a compact, space-saving footprint. Electronic commutation eliminates brush wear and carbon dust, ensuring quiet operation and virtually maintenance-free service life, making them ideal for continuous 24/7 industrial duty cycles.

Electrical Specifications & Precision Control

  • Wide Voltage Input Range: 3V DC to 220V DC to suit diverse global requirements.
  • Customizable Speed Range: Typically 1000–3000 RPM at the motor shaft (before gearbox reduction).
  • Matched BLDC Controllers: Provide advanced control via Hall sensors or high-resolution encoder feedback for tight speed and position regulation.
  • Functions: Soft start/stop, dynamic braking, and programmable acceleration/deceleration ramps for smooth operation.

Mechanical Features & Mounting Options

  • 90° output shaft design: Ideal for corner or side-mounted drives in constrained layouts.
  • Shaft interfaces: Hollow-shaft or solid-shaft options available.
  • Mounting options: Foot or flange mounting for flexible installation.
  • Low-backlash output: Perfect for precision indexing and frequent start/stop applications.

Typical & Custom Applications

Ideal for corner/transfer conveyors, automatic door/gate operators, rotating displays, compact feeders, and general industrial automation requiring quiet, reliable, low-speed, high-torque power in tight layouts. Contact us for custom solutions!
