Brushless DC Gear Motor (Parallel)

Brushless DC parallel shaft gear motors—also called inline gear motors—deliver high power density, quiet running and virtually no maintenance. This category includes both integrated parallel-shaft gearmotors for low-backlash, high-torque output and a small selection of round-shaft BLDC motors for direct coupling or custom gearing. Low-voltage 12/24 VDC and higher-voltage DC options with matched controllers and encoder feedback provide tight speed regulation for continuous-duty conveyors, door operators and compact automation.

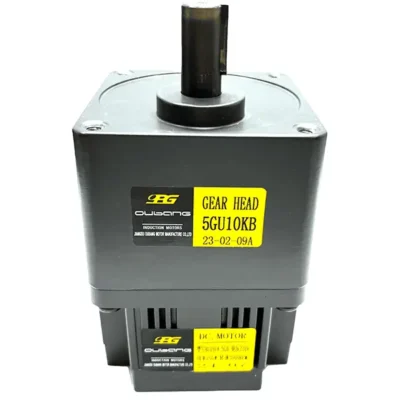

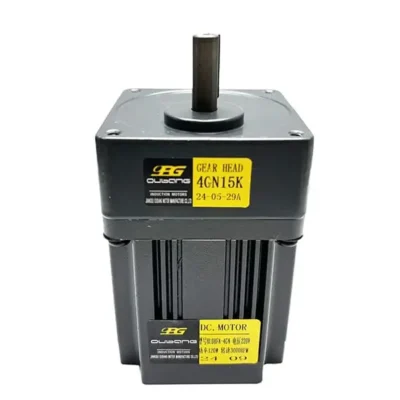

Brushless DC Gear Motor (Parallel) — Inline Efficiency, Compact Design

Our brushless DC parallel shaft gear motor (often called an inline gear motor) combines a BLDC/EC motor with a compact inline reducer for higher efficiency and lower backlash than typical right-angle worm sets. Electronic commutation eliminates brushes, so operation is clean, quiet and virtually maintenance-free.

What’s Included in This Category

Parallel-Shaft BLDC Gearmotors (Main Range)

  • Integrated motor + inline/parallel reducer for compact, high-torque, low-backlash output.
  • Factory-matched components simplify mounting, alignment and long-term reliability.

Round-Shaft BLDC Motors (Selected Models)

  • 1–2 round-shaft options for direct coupling to pulleys/couplings or user-specified gearheads.
  • Best where higher base speed or custom reduction is required in a small footprint.

Voltages, Drives & Control

  • 12/24 VDC low-voltage and higher-voltage DC windings available (on request).
  • Matched BLDC controllers with Hall/encoder feedback enable precise speed regulation, soft start/stop, dynamic braking and programmable ramps.

Performance & Ratios

  • Inline/planetary or parallel-shaft stages support wide reduction ratios for very low to several-hundred-RPM outputs (application-dependent).
  • Higher mechanical efficiency and lower backlash than typical right-angle worm gearmotors at similar sizes.
  • Low rotor inertia supports fast acceleration/deceleration and repeatable cycle times.

Options & Accessories

  • Encoders for closed-loop control and process feedback.
  • Electromagnetic brake (on select models) for fast stopping and holding.
  • Hollow- or solid-shaft outputs, foot or flange mounting, custom leads/connectors.

Hazardous & Low-Voltage Solutions

Low-voltage 12/24 VDC models suit portable or remote equipment (battery/solar). For systems designed for hazardous areas (e.g., flammable gases or vapors), low-voltage drives help reduce arcing risk—contact us for selection and compliance guidance.

Typical Applications

Continuous-duty conveyors and feeders, door/gate openers, rotating retail displays, compact pumps, and general automation where quiet operation, tight speed regulation and long life are required.

Why Choose This Range

  • No brush maintenance; clean, quiet running for 24/7 duty
  • Inline layout saves space and simplifies alignment
  • Higher torque/efficiency and lower backlash than typical worm gearmotors
  • Integrated motor-drive-feedback options reduce wiring and setup time
