Brushed DC Worm Gear Motor

Brushed DC Worm Gear Motor — Right-Angle, High Reduction

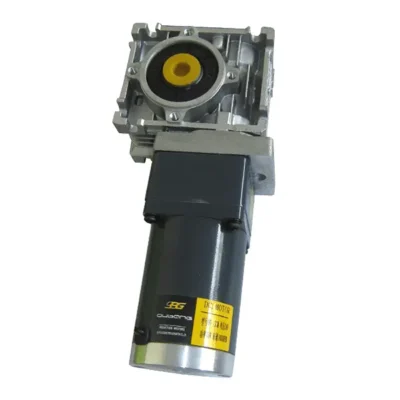

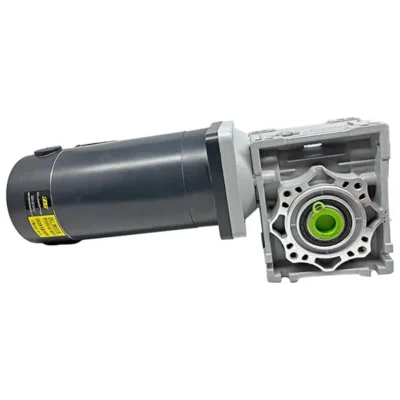

This drive combines a brushed DC motor with a right-angle worm gearbox to deliver smooth, high-torque output at low speed in a very compact footprint. The 90-degree layout simplifies machine routing, while the worm stage provides quiet running and strong resistance to backdriving for improved positioning and holding.

Electrical & Control

• Typical voltages: 12 V / 24 V / 48 V (others on request)
• Speed control: PWM or adjustable supply voltage for wide, responsive RPM regulation
• Reversing: fast CW/CCW direction change for indexed motion and start/stop duty
• Options: encoders for feedback, EMC suppression, custom leads/connectors

Mechanical & Mounting

• Right-angle worm gearbox for space-saving installations
• Outputs: hollow-shaft or solid-shaft with keyway to match your coupling or sprocket
• Foot or flange mounting for quick drop-in integration
• Durable housing and bearings for low-noise, continuous duty

Reduction & Performance

• High reduction ratios for very low output speeds and stable torque
• Inherent backdriving resistance improves holding on horizontal loads
• Optional brake available for enhanced holding on vertical or safety-critical applications

Typical Applications

Corner and transfer conveyors, feeders, turntables, small lifts/actuators, gates and doors, packaging and labeling modules, vending mechanisms, and general compact automation that requires reliable low-speed torque in a tight space.

Why Choose This Range

• Compact right-angle layout simplifies machine design
• Simple, cost-effective control with widely available DC drivers
• Reversible operation with fast start/stop response
• Multiple output interfaces (hollow/solid) and mounting options
