Brushed DC Right Angle Gear Motor

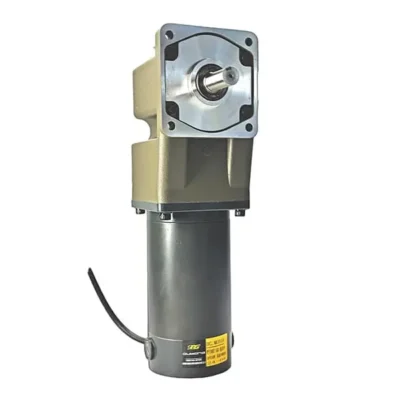

Brushed DC Right Angle Gear Motor for Compact Automation

This range combines a brushed DC motor with an integrated right-angle reducer to deliver high torque at low speed in tight installations. The 90-degree output simplifies corner layouts and keeps the drive compact for conveyors, feeders and packaging machinery.

Mounting & Size

• Square mounting sizes: 80×80 to 120×120 mm
• Foot or flange mounting for quick drop-in installation
• Hollow-shaft and solid-shaft output options to match your coupling or sprocket

Electrical & Control

• Typical DC voltages: 12 V / 24 V / 48 V (others on request)
• Simple speed regulation via PWM or adjustable supply voltage
• Reversible operation for quick CW/CCW direction changes

Right-Angle Gearbox Advantages

• Space-saving 90-degree output for corner or side-mounted drives
• Smooth, stable low-speed torque for indexing and start/stop duty
• Multiple output interfaces (keyed shaft, hollow shaft) for flexible integration

Typical Applications

Corner and transfer conveyors, labeling and packaging modules, gates/doors, compact feeders, turntables, vending mechanisms and other small automation requiring reliable low-speed torque in a tight footprint.

Why Choose This Range

• Compact right-angle layout reduces machine depth and simplifies routing
• Easy control with widely available DC drivers and power supplies
• Reversible drive with fast start/stop response
• Hollow/solid-shaft options and multiple mountings for quick integration
