AC Parallel Shaft Gear Motor

AC Parallel Shaft Gear Motor (100W–3700W)

This medium-power series delivers high torque in a compact footprint for continuous industrial duty. Designed for three-phase 220V or 380V operation with a VFD, it provides smooth acceleration, precise speed regulation and energy-efficient control.

Voltage & Control

• Three-phase 220V / 380V, VFD-ready for wide speed range and soft start/stop.
• Stable output for continuous duty; ideal as a low speed gear motor in automation equipment.

Power & Mechanical Range

• Power: 100–3700 W
• Shaft diameters: 18–40 mm

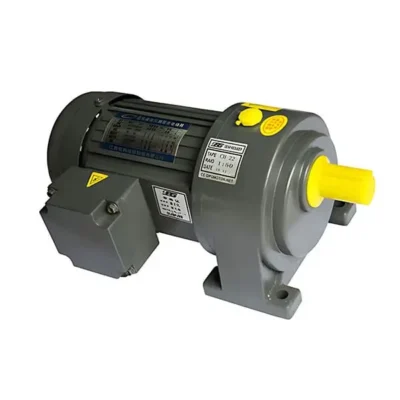

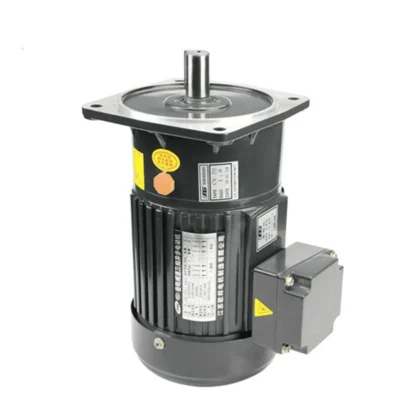

• Mounting: compact parallel-shaft layout; foot or flange installation
• Robust housing and bearings for reliable, low-noise running

Ratios & Output Speeds

• Reduction ratios: 3:1 to 1800:1 for very low output speeds and high torque
• Compatible with VFD control for fine RPM setting and process repeatability

Options & Accessories

• Gear motor with brake: electromagnetic power-off brake for fast stopping and load holding
• Encoders or external fans for process feedback and enhanced cooling
• Multiple shaft styles, keyways and protection classes on request

Typical Applications

Conveyors and packaging lines, mixers and agitators, small hoists and indexing tables, pumps, material-handling equipment, and general factory automation where compact size, easy maintenance and stable low-speed torque are required.

Why Choose This Range

• Compact parallel-shaft design saves space and simplifies machine layouts
• VFD-ready three-phase drive for smooth, accurate speed control
• Easy installation and maintenance; long service life
• Wide ratio coverage up to 1800:1 for ultra-low output speeds
